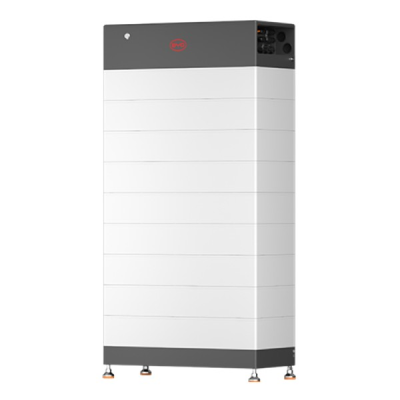

BYD Battery Box Premium HVB 2.97kWh Lithium Battery

"The BYD Battery Box Premium HVB 2.97kWh Lithium Battery is a high-voltage, modular energy storage module designed for scalable residential and light commercial solar, backup and off-grid systems. Built using safe and durable Lithium Iron Phosphate (LFP) chemistry, the HVB platform delivers high efficiency, long service life and excellent safety credentials.

Each 2.97kWh module stacks vertically to form an HVB tower, allowing flexible system sizing from small domestic installations to larger commercial projects. Up to three towers can be connected in parallel, enabling total storage capacities of up to 89.07kWh. The true high-voltage architecture maximises round-trip efficiency and ensures compatibility with modern high-voltage hybrid and battery inverters.

Key Specifications:

Battery Chemistry	Lithium Iron Phosphate (LFP)
Usable Energy per Module	2.97 kWh
Nominal Voltage per Module	51.2 V
Module Weight	Approx. 27.3 kg
Capacity per Tower	5.94 – 29.69 kWh
Max System Capacity	89.07 kWh (3 towers)
Continuous Charge/Discharge Current	50 A
Peak Charge/Discharge Current	98 A (15 s)
Round-Trip Efficiency	≥95%
Operating Temperature	-20°C to +50°C (derating at low temperatures)
Ingress Protection	IP55
Installation	Indoor or sheltered outdoor, floor-standing
Max Installation Altitude	4,000 m
Expandability	Add modules or towers at any time
Inverter Compatibility	High-voltage hybrid and battery inverters
Warranty	15 years

Key Advantages:

• High-voltage modular lithium battery for solar PV and backup systems
• Safe, cobalt-free LFP chemistry with long cycle life
• High power output for backup and off-grid operation
• Tool-less, patented plug-in stacking design
• Compact tower height and sub-30kg modules for easier installation
• Remote diagnostics and over-the-air updates

"
